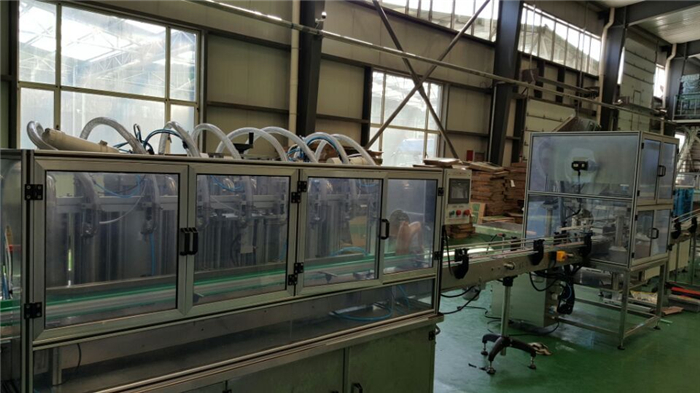

Equipment combination: automatic filling = capping machine= aluminium foil sealer = labeler = Inkjet Printer = carton sealer
brief introduction
The automatic filling line widely used in petrochemical, daily chemicals, pharmaceutical, food, pesticide, chemical and other industries in the packaging line. It can realize the automatic production line of filling, capping, capping, sealing of aluminum foil, labeling, packing, sealing and integration.
1, digital display, directly set filling capacity
2, PLC program control, frequency control, linear filling
3, high-precision volumetric flowmeter, accurate and reliable
4, mechanical seal and vacuum suction, double anti drip
5, the first fast filling, then slow, double flow high efficient filling
Features: reduce labor intensity and provide work efficiency
|
Model |
ZXR-4 |
ZXR-6 |
ZXR-8 |
ZXR-10 |
|
Filling Nozzle |
4 |
6 |
8 |
10 |
|
Filling Volume |
100-5000ml（Customized Available） |
|||
|
Production Capacity |
500-2000B/H（depend on bottle size and filling material ） |
|||
|
Filling Accuracy |
±1% |
|||
|
Machine Length |
15M（Customized Available） |
|||
|
Power |
≤8KW |
|||
|
Voltage |
220/380V 50/60HZ |
|||
