Machine configuration: Taiwan LiBang gear motor, SIEMENS PLC, Kunlun Tongtai touch screen, OMRON photoelectric switch and relay, Tianyi switch and indicator, Schneider AC contactor, Taiwan Airtac air cylinder and solenoid valve, SMC vacuum generator, Taiwan Chelic sucker, Harbin Bearing, Japan SKD11, Italy imported blade belt, double ball brake casters

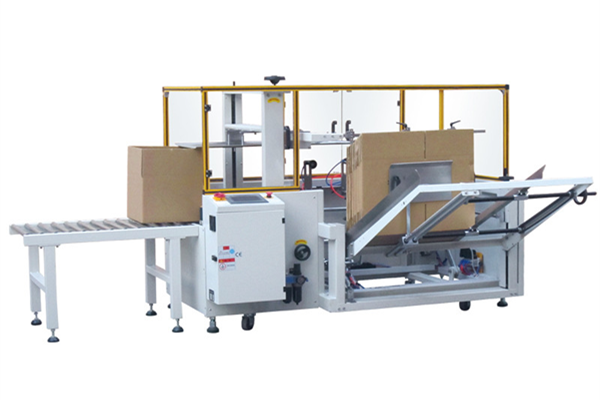

Introduction: manual adjustment of carton size, suitable for the same specifications carton at the same time to sealing; simple operation, convenient use, easy adjustment, fast opening speed and high efficiency, durable, can be used alone, and can also be automated to supporting the use of packaging line.
The utility model is suitable for packing articles of various kinds of articles such as household appliances, textiles, food, daily articles, medicines, light industry, chemical industry, etc.;
Workflow:
|
Model |
KX-4D |
|
Standard Machine For carton size |
L250~500W150~400 H100~400mm |
|
Platform height |
600mm |
|
Sealing Speed |
8-12 carton/min ( carton length is related) |
|
Machine Size |
L2000xW1900xH1450mm |
|
Voltage |
220V50HZ |
|
Air pressure |
6～7KG |
|
Suitable Tape |
W48～60～75mmxL1000 |
|
Machine Weight |
Net 480Kg |
|
|
|
