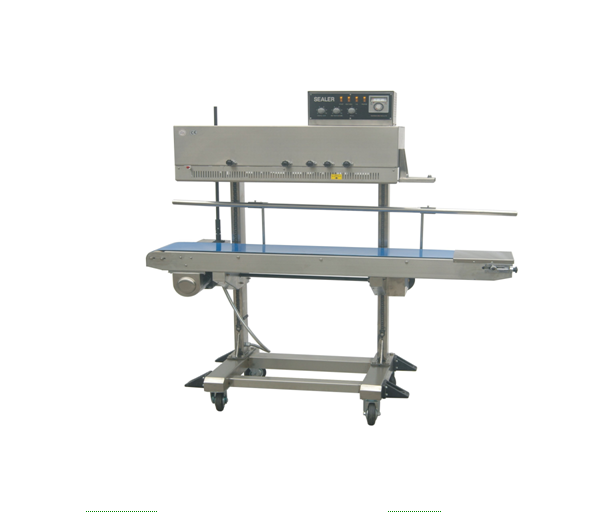

FRM-1120L
ink wheel printing continuous sealing machine is suitable for any sealing
material which can be heat sealed. The machine uses the solid ink wheel to
print the colored label at the same time. The printed letter is clear, the
color is optional, the printing is instantaneous dry , and the adhesive force
is strong. A counting device can also be configured as required.
Technical
characteristics:
1 、 stepless speed regulation, constant temperature control.
2.
The temperature and the height of the conveyor can be adjusted.
3,
clear printed letter, optional colors, printing instant dry, strong adhesion.
Scope
of application:
FRM-1120LD
model can be adjusted up and down of conveyor and machine head, which can be
used in a wide range and can be used in conjunction with the production line.
|
Model |
FRM-1120L |
|
Voltage (V/Hz) |
AC 220/50 110/60 |
|
Motor Power(W) |
245 |
|
Heating Power(W) |
300×2 |
|
Printing Power(W) |
40×2 |
|
Sealing Speed(m/min) |
0-10 |
|
Sealing Width(mm) |
10 |
|
Temperature range(℃) |
0-300 |
|
Printing Type |
Solid ink wheel |
|
Distance from sealing center to conveying table(mm) |
100-500 |
|
adjustable height of machine head to ground (mm) |
700-1100 |
|
Size of conveyor (L×W) (mm) |
1400×250 |
|
Maximum load weight of conveying table (kg) |
5 |
|
Total carrying capacity of conveyor (kg) |
15 |
|
Size (L×W×H) (mm) |
1450×680×1480 |
|
Weight (kg) |
100 |
