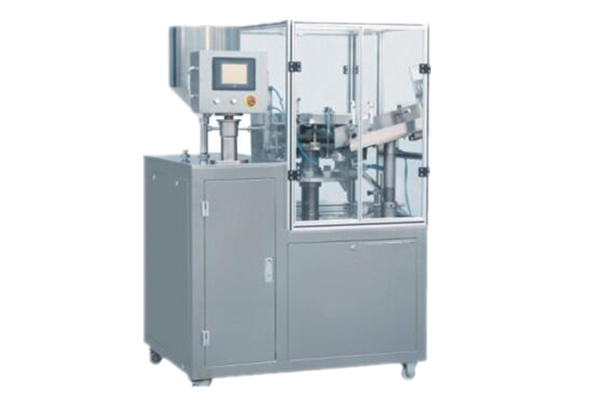

This machine is mainly used
to fill the material into metal tube with fixed quantity and sealing the tube.
It is widely used for the packing of chemical, cosmetic, foods, and
pharmaceutics industries.
For example: ointment, gooey,
AB glue, super glue, epoxy adhesive, skin cream, hair dye, shoeshine,
toothpaste and others liquid and poultice materials.
Manually put the metal tube (max: 16 tubes) into the tube-holding base. With the help of automatic mechanical transmission shifted. Automatic detection and confirm the tube base have tube and then automatic filling. The final step is execute the sealing with three-fold or four-fold.
|
Voltage |
220V±10% 50Hz |
|
Work temperature |
atmospheric temperature |
|
Sealing Diameter |
11-38 |
|
Tube Height |
5-200mm |
|
Filling Volume |
10-75ml |
|
Filling Precision |
< 2% |
|
Air pressure |
Pressure 0.6--0.7Mpa Air consumption:≥0.2M3/min ( base on filling material ) |
|
Production capacity |
30-60 pcs/min |
|
Machine size |
1000×900×1700（mm） |
|
Motor power |
1.1kw |
|
Whole machine weight |
650kg |
